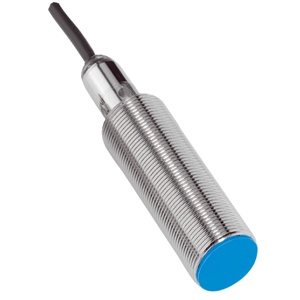

Sick IME18-05BPOZW5S Proximity Sensor
The Sick IME18-05BPOZW5S Proximity Sensor offers a Metric; Standard design, 5 mm sensing range, Flush installation type, PNP NC output, and Cable, 3-wire, 5 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IME18-05BPOZW5S |
Sick IME18-05BPOZW5S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 5 mm |
| Safe sensing range Sa | 4.05 mm |
| Installation type | Flush |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 5 m |
| Switching output | PNP |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 67 mm |
| Thread length | 52 mm |
| Tightening torque, max. | β€ 40 Nm |
| Unit weight | 0.170 Kilograms |
| Net unit weight | 0.17 Kilograms |
| Country of origin | Malaysia |
