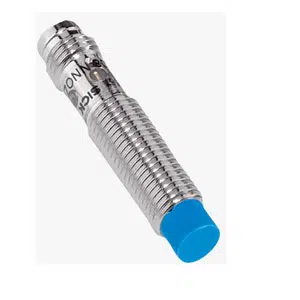

IME12-10NPSZC0K: 1071234 - Sick M12 Inductive Sensor
| Housing | Cylindrical thread design, Short-body |
| Thread Size | M12 x 1 |
| Diameter | Γ 12 mm |
| Installation Type | Non-flush |
| Connection Type | Male connector M12, 4-pin |
Sick M12 Inductive Sensor IME12-10NPSZC0K, 1071234 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Short-body |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 10 mm |
| Safe sensing range Sa | 8.1 mm |
| Installation type | Non-flush |
| Switching frequency | 400 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Talk to Our Engineer for Sick M12 Inductive Sensor IME12-10NPSZC0K part no: 1071234 with special pricing. Detailed Specifications of IME12-10NPSZC0K, 1071234 include Cylindrical thread design, Short-body housing, M12 x 1 thread size, Γ 12 mm diameter, 10 mm sensing range, 8.1 mm safe sensing range, Non-flush Installation, 400 Hz frequency, Male connector M12, 4-pin, PNP, NO output, DC 3-wire. Take the First Step with a Quote for your requirement of Sick M12 Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Dealers & Distributors.
