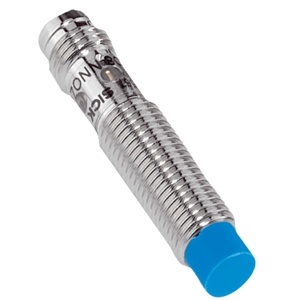

Home Sick Proximity Sensor IME08-2N5POZT0S Sick IME08-2N5POZT0S Proximity Sensor The Sick IME08-2N5POZT0S Proximity Sensor offers a M8 x 1 , 2.025 mm sensing range, 4,000 Hz installation type, NC DC 3-wire output, and PNP connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMG Series.
Brand Sick Product Type Proximity Sensor Model Number IME08-2N5POZT0S
Sick IME08-2N5POZT0S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 2.5 mm Safe sensing range Sa 2.025 mm Installation type Non-flush Switching frequency 4,000 Hz Connection type Connector M8, 3-pin Switching output PNP Output function NC Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Ambient operating temperature –25 °C ... +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 50 mm Thread length 30 mm Tightening torque, max. ≤ 5 Nm
