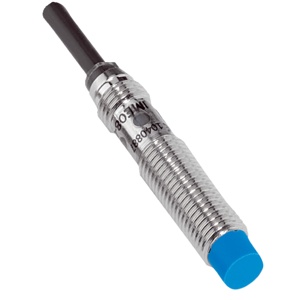

Sick IME08-04NNSZW5K Proximity Sensor
The Sick IME08-04NNSZW5K Proximity Sensor offers a Metric; Short-body, 4 mm sensing range, Non-flush installation type, NPN NO output, and Cable, 3-wire, 5 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IME08-04NNSZW5K |
Sick IME08-04NNSZW5K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Thread size | M8 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 4,000 Hz |
| Connection type | Cable, 3-wire, 5 m |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 43 mm |
| Thread length | 21 mm |
| Tightening torque, max. | β€ 5 Nm |
| Unit weight | 0.099 Kilograms |
| Net unit weight | 0.099 Kilograms |
| Country of origin | Malaysia |
