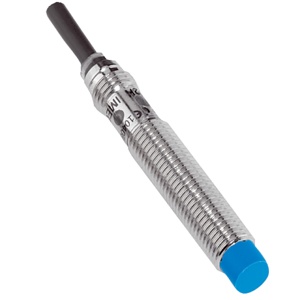

Home Sick Proximity Sensor IME08-04NDOZY2S Sick IME08-04NDOZY2S Proximity Sensor The Sick IME08-04NDOZY2S Proximity Sensor offers a Metric; Standard design , 4 mm sensing range, Non-flush installation type, NC output, and Cable, 2-wire, 2 m, Oil-resistant connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME08-04NDOZY2S
Sick IME08-04NDOZY2S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M8 1 Diameter Γ 8 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Non-flush Switching frequency 4,000 Hz Connection type Cable, 2-wire, 2 m, Oil-resistant Output function NC Electrical wiring DC 2-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple β€ 10 % Voltage drop β€ 4 V 1)β€ 4.5 V 2) Time delay before availability β€ 100 ms Hysteresis 5 % ... 15 % Reproducibility β€ 2 % 3) 4) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 100 mA Ambient operating temperature β25 Β°C ... +75 Β°C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 52 mm Thread length 30 mm Tightening torque, max. β€ 5 Nm
