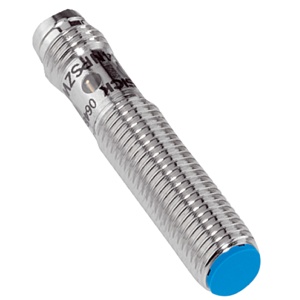

Home Sick Proximity Sensor IME08-02BPOZT0K Sick IME08-02BPOZT0K Proximity Sensor The Sick IME08-02BPOZT0K Proximity Sensor offers a Metric; Short-body , 2 mm sensing range, Flush installation type, PNP NC output, and Connector M8, 3-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME08-02BPOZT0K
Sick IME08-02BPOZT0K Proximity Sensor – Technical Specifications Specification Value Housing Metric; Short-body Thread size M8 1 Diameter Ø 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 4,000 Hz Connection type Connector M8, 3-pin Switching output PNP Output function NC Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Ambient operating temperature –25 °C ... +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 41 mm Thread length 25 mm Tightening torque, max. ≤ 5 Nm Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.9 mm
