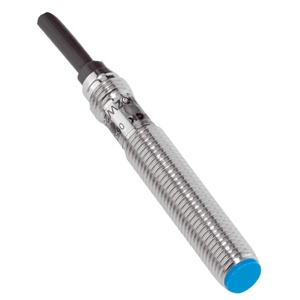

Home Sick Proximity Sensor IME08-02BNSZWDSS59 Sick IME08-02BNSZWDSS59 Proximity Sensor The Sick IME08-02BNSZWDSS59 Proximity Sensor offers a Metric; Standard design , 2 mm sensing range, Flush installation type, NPN NO output, and Cable with AMP male connector, 3-pin, 200 mm connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME08-02BNSZWDSS59
Sick IME08-02BNSZWDSS59 Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M8 1 Diameter Γ 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 4,000 Hz Connection type Cable with AMP male connector, 3-pin, 200 mm Switching output NPN Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 100 ms Hysteresis 5 % ... 15 % Reproducibility β€ 2 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 10 mA Ambient operating temperature β30 Β°C ... +75 Β°C 4) Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 71.5 mm Thread length 52.5 mm Tightening torque, max. β€ 5 Nm
