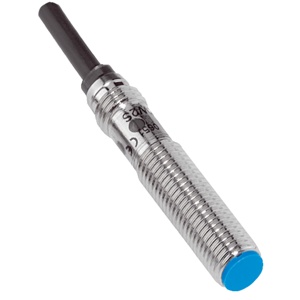

Sick IME08-02BDSZY2K Proximity Sensor
The Sick IME08-02BDSZY2K Proximity Sensor offers a M8 x 1, 1.62 mm sensing range, 4,000 Hz installation type, NO DC 2-wire output, and connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMG Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IME08-02BDSZY2K |
Sick IME08-02BDSZY2K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 4,000 Hz |
| Connection type | Cable, 2-wire, 2 m, Oil-resistant |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP67 1) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 4 V 1)β€ 4.5 V 2) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | β€ 2 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 100 mA |
| Cable material | PVC |
| Conductor size | 0.25 mmΒ² |
| Cable diameter | Γ 3.9 mm |
| Ambient operating temperature | β25 Β°C ... +75 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 43 mm |
| Thread length | 25 mm |
| Tightening torque, max. | β€ 5 Nm |
