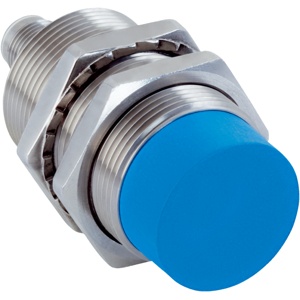

Sick IMC30-20NPPVC0SA71 Proximity Sensor
The Sick IMC30-20NPPVC0SA71 Proximity Sensor offers a Metric, 0 mm ... 20 mm 1) sensing range, Non-flush installation type, PNP NC / NO output, and Male connector M12, 4-pin 2) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMC30-20NPPVC0SA71 |
Sick IMC30-20NPPVC0SA71 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 0 mm ... 20 mm 1) |
| Safe sensing range Sa | 16.2 mm |
| Installation type | Non-flush |
| Connection type | Male connector M12, 4-pin 2) |
| Switching output | PNP |
| Output function | NC / NO |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 3)IP69K 4) |
| Special features | Smart Task, Resistant against coolant lubricants, IO-Link |
| Special applications | Zones with coolants and lubricants, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 2) |
| Hysteresis | Programmable 3) |
| Reproducibility | β€ 5 % 4) 5) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA 6) |
| Ambient operating temperature | β40 Β°C ... +75 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 70 mm |
| Thread length | 40 mm |
| Tightening torque, max. | Typ. 100 Nm 7) |
