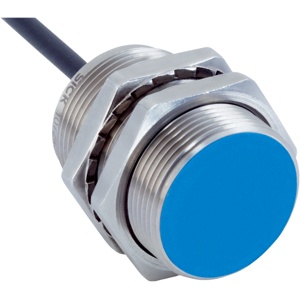

Sick IMB30-15BNSVU2S Proximity Sensor

Name: Sick IMB30-15BNSVU2S
Brand: IndMALL
SKU: 6c3ae2ec4021
Rating: 4.3 (4 reviews)

The Sick IMB30-15BNSVU2S Proximity Sensor offers a Metric; Standard design, 15 mm sensing range, Flush installation type, NPN NO output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMB Series.

Datasheet

Brand	Sick
Product Type	Proximity Sensor
Model Number	IMB30-15BNSVU2S

Sick IMB30-15BNSVU2S Proximity Sensor – Technical Specifications

Specification	Value
Housing	Metric; Standard design
Thread size	M30 x 1.5
Diameter	Ø 30 mm
Sensing range Sn	15 mm
Safe sensing range Sa	12.15 mm
Installation type	Flush
Switching frequency	500 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	NPN
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP68 1)IP69K 2)
Special features	Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
Special applications	Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied	Mounting nut, V2A stainless steel, with locking teeth (2x)
Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V 1)
Hysteresis	3 % ... 20 %
Reproducibility	≤ 2 % 2) 3)
Temperature drift (of Sr)	± 10 %
Continuous current Ia	≤ 200 mA
No load current	≤ 10 mA
Ambient operating temperature	–40 °C ... +100 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	60 mm
Thread length	55 mm
Tightening torque, max.	Typ. 100 Nm 4)Typ. 100 Nm 5)
Protection class	III
Unit weight	0.259 Kilograms
Net unit weight	0.259 Kilograms
Country of origin	Hungary
