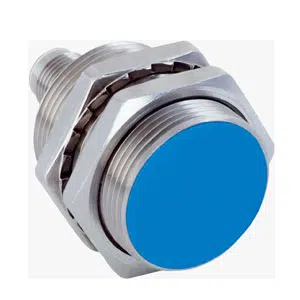

IMB30-15BNOVC0K: 1072851 - Sick 50 mm NPN NC Inductive Sensor
Technical Specifications of Sick 50 mm NPN NC Inductive Sensor IMB30-15BNOVC0K 1072851:
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB30-15BNOVC0K |
Sick 50 mm NPN NC Inductive Sensor IMB30-15BNOVC0K, 1072851 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Short-body |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 15 mm |
| Safe sensing range Sa | 12.15 mm |
| Installation type | Flush |
| Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Reach Us by Email for Sick 50 mm NPN NC Inductive Sensor IMB30-15BNOVC0K part no: 1072851 at Discounted Rates. Key Technical Features of IMB30-15BNOVC0K, 1072851 are Cylindrical thread design, Short-body housing, M30 x 1.5 thread size, Γ 30 mm diameter, 15 mm sensing range, Flush Installation, 500 Hz frequency, Male connector M12, 4-pin , Connection type, NPN, Switching output, NC output, DC 3-wire ,Electrical wiring. Navigate Your Needs with a Quote for your requirement of Sick 50 mm NPN NC Inductive Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
