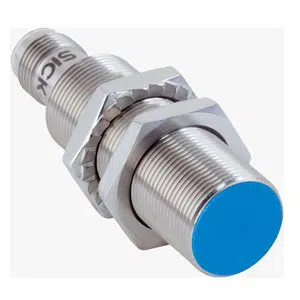

IMB18-08BPSVC0S: 1072806 - Sick Quasi-flush PNP Inductive Sensor
Technical Specifications of Sick Quasi-flush PNP Inductive Sensor IMB18-08BPSVC0S 1072806:
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 8 mm |
| Installation type | Quasi-flush 1) |
Sick Quasi-flush PNP Inductive Sensor IMB18-08BPSVC0S, 1072806 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Quasi-flush 1) |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin 2) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 3), IP69K 4) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Obtain a Quote for Sick Quasi-flush PNP Inductive Sensor IMB18-08BPSVC0S part no: 1072806 at economical prices. Specifications Overview for IMB18-08BPSVC0S, 1072806 reveals Cylindrical thread design, Standard design housing, M18 x 1 thread size, Γ 18 mm diameter, 8 mm sensing range, Quasi-flush 1) Installation, 1,000 Hz frequency, Male connector M12, 4-pin 2), Connection type, PNP, Switching output, NO output, DC 3-wire
,Electrical wiring. Take the First Step with a Quote for your requirement of Sick Quasi-flush PNP Inductive Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
