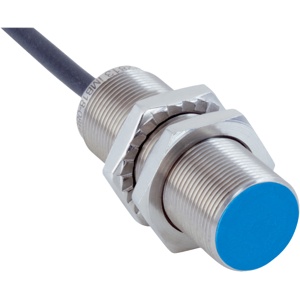

Sick IMB18-08BNSVU6S Proximity Sensor
The Sick IMB18-08BNSVU6S Proximity Sensor offers a Metric; Standard design, 8 mm sensing range, Quasi-flush 1) installation type, NPN NO output, and Cable, 3-wire, 10 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMB Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMB18-08BNSVU6S |
Sick IMB18-08BNSVU6S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Quasi-flush 1) |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 10 m |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2)IP69K 3) |
| Special features | Temperature resistance |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β40 Β°C ... +100 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 50 mm |
| Thread length | 45 mm |
| Tightening torque, max. | Typ. 60 Nm 4)Typ. 90 Nm 5) |
| Protection class | III |
