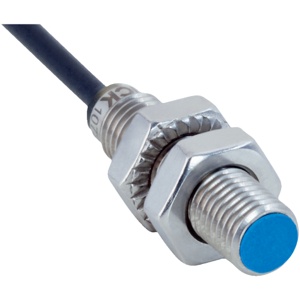

Sick IMB08-1B5PSVU3KS10 Proximity Sensor
The Sick IMB08-1B5PSVU3KS10 Proximity Sensor offers a Metric; Short-body, 1.5 mm sensing range, Flush installation type, PNP NO output, and Cable, 3-wire, 3 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMB Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMB08-1B5PSVU3KS10 |
Sick IMB08-1B5PSVU3KS10 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 1.5 mm |
| Safe sensing range Sa | 1.215 mm |
| Installation type | Flush |
| Switching frequency | 4,000 Hz |
| Connection type | Cable, 3-wire, 3 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1)IP69K 2) |
| Special features | Resistant against coolant lubricants, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| No load current | β€ 10 mA |
| Ambient operating temperature | β40 Β°C ... +100 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 32 mm |
| Thread length | 28 mm |
| Tightening torque, max. | Typ. 7 Nm 4)Typ. 14 Nm 5) |
| Protection class | III |
| Unit weight | 50.000 Grams |
| Net unit weight | 50 Grams |
| Country of origin | Hungary |
