If youβre not fully sure about IMB08-04NPSVT0K, taking a closer look at IFM Proximity Sensor, Sick Diffuse Sensor and Sick Ime12 04Bpszc0S often helps compare reliability, cost, and availability.

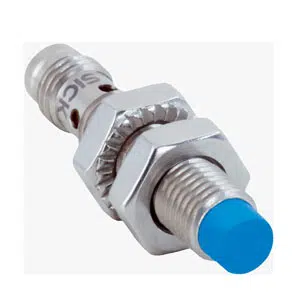

IMB08-04NPSVT0K: 1072694 - Sick 4,000 Hz Frequency Inductive Sensor
Technical Specifications of Sick 4,000 Hz Frequency Inductive Sensor IMB08-04NPSVT0K 1072694:
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB08-04NPSVT0K |
Sick 4,000 Hz Frequency Inductive Sensor IMB08-04NPSVT0K, 1072694 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Short-body |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 4,000 Hz |
| Connection type | Connector M8, 3-pin 1) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Ask for the Pricing of Sick 4,000 Hz Frequency Inductive Sensor IMB08-04NPSVT0K part no: 1072694 at unbeatable prices. Detailed Specifications of IMB08-04NPSVT0K, 1072694 featureCylindrical thread design, Short-body housing, M8 x 1 thread size, Γ 8 mm diameter, 4 mm sensing range, Non-flush Installation, 4,000 Hz frequency, Connector M8, 3-pin , Connection type, PNP, Switching output, NO output, DC 3-wire ,Electrical wiring. Now's the Time to Secure a Quote for your requirement of Sick 4,000 Hz Frequency Inductive Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
