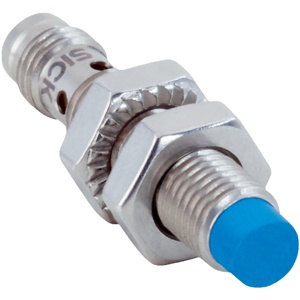

Sick IMB08-04NDSVT0K Proximity Sensor
The Sick IMB08-04NDSVT0K Proximity Sensor offers a Metric; Short-body, 4 mm sensing range, Non-flush installation type, DC 2-wire NO output, and Connector M8, 3-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMB08-04NDSVT0K |
Sick IMB08-04NDSVT0K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Short-body |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Non-flush |
| Switching frequency | 4,000 Hz |
| Connection type | Connector M8, 3-pin 1) |
| Output function | NO |
| Electrical wiring | DC 2-wire |
| Enclosure rating | IP68 2)IP69K 3) |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 4 V 1)β€ 4.5 V 2) |
| Time delay before availability | β€ 100 ms |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β40 Β°C ... +100 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 40 mm |
| Thread length | 24 mm |
| Tightening torque, max. | Typ. 7 Nm 5)Typ. 14 Nm 6) |
