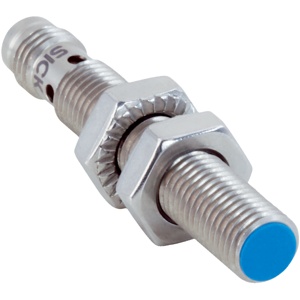

Sick IMB08-02BPSVT0SX01 Proximity Sensor
The Sick IMB08-02BPSVT0SX01 Proximity Sensor offers a Metric; Standard design, 2 mm sensing range, Flush installation type, DC 3-wire NO output, and Connector M8, 3-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMB08-02BPSVT0SX01 |
Sick IMB08-02BPSVT0SX01 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M8 x 1 |
| Diameter | Γ 8 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 4,000 Hz |
| Connection type | Connector M8, 3-pin 1) |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 2) |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x)Cable housing/cover |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % |
| Voltage drop | β€ 2 V 1) |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | β€ 2 % 2) 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA 4) |
| Ambient operating temperature | β20 Β°C ... +85 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 50 mm |
| Thread length | 38 mm |
| Tightening torque, max. | Typ. 7 Nm 5)Typ. 14 Nm 6) |
| Cable material | PUR |
| Conductor size | 0.14 mmΒ² |
| Cable diameter | Γ 3 mm |
| Switching output | PNP |
| No load current | β€ 10 mA |
