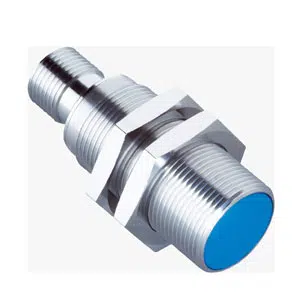

Sick IMA18-10BE1ZC0K Proximity Sensor
The Sick IMA18-10BE1ZC0K Proximity Sensor delivers a 0β10 mm sensing range using an M18 threaded housing with a 4-pin analog output. It supports quasi-flush installation and includes Β± 0.02 mm repeatability, β€ 2 Β΅m resolution, a durable M12 connector, and an IP67 enclosure rating for stable industrial measurement. Explore brand-wide products at Sick Sensors & Safety, view proximity models at Sick Proximity Sensors, and learn about the IMA series at Sick IMA Series Sensors.
| Brand | Sick |
| Proximity Sensor | Proximity Sensor |
| Model Number | IMA18-10BE1ZC0K |
Sick IMA18-10BE1ZC0K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 0 mm ... 10 mm |
| Installation type | Quasi-flush |
| Connection type | Male connector M12, 4-pin |
| Output function | Analog |
| Repeatability (Ta not constant) | 0.3 mm 1) 2) 3) |
| Repeatability (Ta constant) | Β± 0.02 mm |
| Resolution | β€ 2 Β΅m |
| Enclosure rating | IP67 4) |
| Special features | Analog output |
| Items supplied | Mounting nut, brass, chromium-plated (2x), Toothed washer, stainless steel (2 x) |
The Sick IMA18-10BE1ZC0K Proximity Sensor is an inductive sensing device designed for accurate measurement within industrial automation systems. The model Sick IMA18-10BE1ZC0K offers a 0β10 mm sensing range, analog output, M18 cylindrical housing, and IP67 protection, making it suited for demanding machine environments. As part of the IMA Series, it supports precise position detection and continuous monitoring across automated processes.
This sensor is used in conveyors, packaging machinery, assembly lines, and component positioning applications. Its quasi-flush installation enhances integration flexibility, while the analog signal enables continuous distance feedback for stable control. The M12 connector and fine resolution help maintain consistent measurement accuracy, supporting reliable operation in repetitive automation cycles.
The Sick IMA18-10BE1ZC0K Proximity Sensor combines a 10 mm sensing capability, M18 housing, and analog output suitable for industrial measurement tasks. The model Sick IMA18-10BE1ZC0K provides dependable performance through its tight repeatability and enclosure rating, ensuring accurate sensing in varied operating conditions. Its structural design and series-level characteristics make it a trusted inductive sensing entity for long-term automation use.
