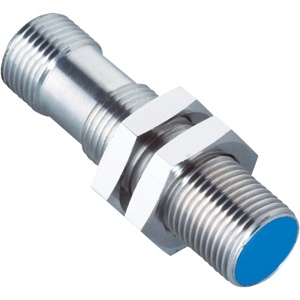

Sick IMA12-06BE1ZC0S Proximity Sensor
The Sick IMA12-06BE1ZC0S Proximity Sensor offers a Metric, 0 mm ... 6 mm sensing range, Quasi-flush installation type, Analog output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMA12-06BE1ZC0S |
Sick IMA12-06BE1ZC0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 0 mm ... 6 mm |
| Installation type | Quasi-flush |
| Connection type | Male connector M12, 4-pin |
| Output function | Analog |
| Enclosure rating | IP67 4) |
| Special features | Analog output, triple sensing range |
| Items supplied | Mounting nut, brass, chromium-plated (2x)Toothed washer, stainless steel (2 x) |
| Supply voltage | 15 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Time delay before availability | β€ 50 ms |
| Temperature drift (of Sr) | Β± 5 % 2)Β± 10 % 3) |
| No load current | β€ 12 mA 4) |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Brass, chromium-plated |
| Sensing face material | Plastic, PTB |
| Housing length | 50 mm |
| Thread length | 50 mm |
| Unit weight | 38.000 Grams |
| Net unit weight | 38 Grams |
| Country of origin | Sri Lanka |
