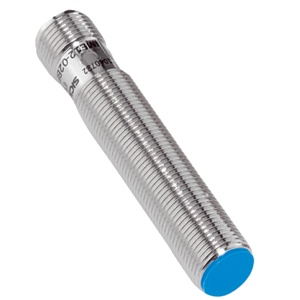

Sick IMA12-02BE1ZC0S Proximity Sensor
The Sick IMA12-02BE1ZC0S Proximity Sensor offers a Metric, 0 mm ... 2 mm sensing range, Flush installation type, Analog output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IMA12-02BE1ZC0S |
Sick IMA12-02BE1ZC0S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 0 mm ... 2 mm |
| Installation type | Flush |
| Connection type | Male connector M12, 4-pin |
| Output function | Analog |
| Enclosure rating | IP67 4) |
| Special features | Analog output |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 15 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Time delay before availability | β€ 30 ms |
| Temperature drift (of Sr) | β€ 10 % |
| No load current | β€ 12 mA 2) |
| Ambient operating temperature | β25 Β°C ... +70 Β°C 4) 5) |
| Housing material | Brass, chromium-plated |
| Sensing face material | Plastic |
| Housing length | 65 mm |
| Thread length | 48 mm |
