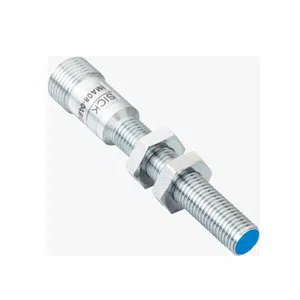

Sick IMA08-04BE3ZC0K Proximity Sensor
Sick IMA08-04BE3ZC0K Proximity Sensor delivers 4 mm sensing range, M8 x 1 cylindrical thread, and precise analog output for automation systems. The IMA08-04BE3ZC0K is a Sick Proximity Sensor from the IMA Series by Sick, featuring Ø8 mm diameter, quasi-flush installation, M12 4-pin connector, repeatability up to ±0.01 mm, ≤1 µm resolution, IP67 enclosure rating, and supplied mounting hardware, defining IMA08-04BE3ZC0K as a Sick 1 µm Resolution Inductive Sensor.
| Brand | Sick |
| Proximity Sensor | Proximity Sensor |
| Model Number | IMA08-04BE3ZC0K |
Sick IMA08-04BE3ZC0K Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design |
| Thread size | M8 x 1 |
| Diameter | Ø 08 mm |
| Sensing range Sn | 0 mm ... 4 mm |
| Installation type | Quasi-flush |
| Connection type | Male connector M12, 4-pin |
| Output function | Analog |
| Repeatability (Ta not constant) | 0.3 mm 1) 2) 3) |
| Repeatability (Ta constant) | ± 0.01 mm |
| Resolution | ≤ 1 µm |
| Enclosure rating | IP67 4) |
| Special features | Analog output |
| Items supplied | Mounting nut, brass, chromium-plated (2x), Toothed washer, stainless steel (2 x) |
The IMA08-04BE3ZC0K Sick 1 µm Resolution Inductive Sensor is a compact cylindrical M8 proximity device designed for industrial automation measurement tasks. With a 4 mm sensing range, analog output, and M8 x 1 threaded housing, it enables accurate position monitoring. This model belongs to the IMA series from Sick and features IP67 enclosure protection for operation in factory environments.
The IMA08-04BE3ZC0K is suitable for conveyors, packaging systems, precision assembly lines, and automated machinery requiring compact sensors. Its analog output provides continuous distance feedback for control systems instead of simple switching signals. The M12 4-pin connector ensures standardized integration, while quasi-flush mounting supports installation in tight metallic machine structures where stable and repeatable detection is required.
The IMA08-04BE3ZC0K from Sick combines defined sensing performance, repeatability up to ±0.01 mm, and ≤1 µm resolution for reliable industrial use. As part of the IMA series, this proximity sensor maintains consistent measurement characteristics in automation systems. Engineers selecting the Sick 1 µm Resolution Inductive Sensor can rely on standardized mounting, connector compatibility, and dependable analog output behavior.
