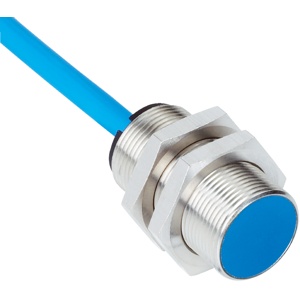

Sick IM12-02B-N-ZW0 Proximity Sensor
The Sick IM12-02B-N-ZW0 Proximity Sensor offers a Metric, 2 mm sensing range, Flush installation type, NAMUR NC output, and Cable, 2-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IM12-02B-N-ZW0 |
Sick IM12-02B-N-ZW0 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 1,200 Hz |
| Connection type | Cable, 2-wire, 2 m |
| Switching output | NAMUR |
| Output function | NC |
| Enclosure rating | IP67 1) |
| Special applications | Explosive areas |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 7.5 V DC ... 25 V DC 1) |
| Hysteresis | 1 % ... 15 % |
| Temperature drift (of Sr) | Β± 10 % |
| Ambient operating temperature | β20 Β°C ... +70 Β°C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PTB |
| Housing length | 30 mm |
| Thread length | 29 mm |
| Tightening torque, max. | 7 Nm |
| Unit weight | 0.153 Kilograms |
| Net unit weight | 0.153 Kilograms |
| Country of origin | Romania |
| Cable material | PVC |
| Conductor size | 0.5 mmΒ² |
| Cable diameter | Γ 5.4 mm |
