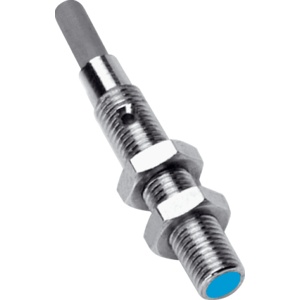

Sick IM04-0B6PS-ZR1 Proximity Sensor
The Sick IM04-0B6PS-ZR1 Proximity Sensor offers a Metric; Standard design, 0.6 mm sensing range, Flush installation type, PNP NO output, and Cable with connector M8, 3-pin, with knurled nuts, 0.2 m 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IM04-0B6PS-ZR1 |
Sick IM04-0B6PS-ZR1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Metric; Standard design |
| Thread size | M4 x 0.5 |
| Diameter | Γ 4 mm |
| Sensing range Sn | 0.6 mm |
| Safe sensing range Sa | 0.486 mm |
| Installation type | Flush |
| Switching frequency | 5,000 Hz |
| Connection type | Cable with connector M8, 3-pin, with knurled nuts, 0.2 m 1) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 2) |
| Items supplied | Mounting nut, V2A stainless steel (2x)Washer, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 10 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | β€ 2 % 3) |
| Temperature drift (of Sr) | β€ 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, POM |
| Housing length | 22 mm |
| Thread length | 19 mm |
| Tightening torque, max. | β€ 0.8 Nm |
| Unit weight | 18.000 Grams |
| Net unit weight | 18 Grams |
| Country of origin | Sri Lanka |
| Cable material | PVC |
| Conductor size | 0.14 mmΒ² |
| Cable diameter | Γ 3.5 mm |
