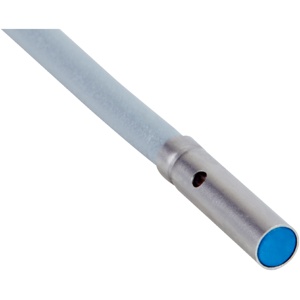

Sick IHP03-0B8PSVU2K Proximity Sensor
The Sick IHP03-0B8PSVU2K Proximity Sensor offers a Cylindrical; Short-body, 0.8 mm sensing range, Flush installation type, PNP NO output, and Cable, 3-wire, 2 m 2) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IH Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IHP03-0B8PSVU2K |
Sick IHP03-0B8PSVU2K Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical; Short-body |
| Diameter | Γ 3 mm |
| Sensing range Sn | 0.8 mm |
| Safe sensing range Sa | 0.648 mm |
| Installation type | Flush |
| Switching frequency | 8,000 Hz |
| Connection type | Cable, 3-wire, 2 m 2) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68IP69K |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 10 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | β€ 2 % 3) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Ceramics, ZrO2 |
| Housing length | 12 mm |
| Unit weight | 24.000 Grams |
| Net unit weight | 24 Grams |
| Country of origin | Sri Lanka |
| Cable material | PUR |
| Conductor size | 0.055 mmΒ² |
| Cable diameter | Γ 2.6 mm |
