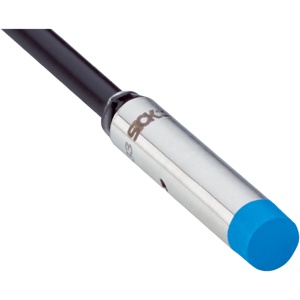

Sick IHM06-06NPSVRDKS01 Proximity Sensor
The Sick IHM06-06NPSVRDKS01 Proximity Sensor offers a Cylindrical; Short-body, 6 mm sensing range, Non-flush installation type, PNP NO output, and Cable with connector M8, 3-pin, 0.15 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IH Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IHM06-06NPSVRDKS01 |
Sick IHM06-06NPSVRDKS01 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical; Short-body |
| Diameter | Γ 6.5 mm |
| Sensing range Sn | 6 mm |
| Safe sensing range Sa | 4.86 mm |
| Installation type | Non-flush |
| Switching frequency | 1,000 Hz |
| Connection type | Cable with connector M8, 3-pin, 0.15 m |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Special features | Visual adjustment indicator, IO-Link, triple sensing range |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 80 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | β€ 2 % 3) |
| Temperature drift (of Sr) | β€ 10 % |
| Continuous current Ia | β€ 200 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 31.5 mm |
| Unit weight | 15.000 Grams |
| Net unit weight | 15 Grams |
| Country of origin | Malaysia |
| Cable material | PVC |
| Conductor size | 0.25 mmΒ² |
| Cable diameter | Γ 3.7 mm |
