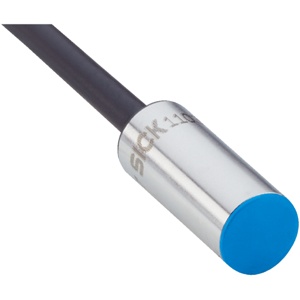

Sick IHM06-02BNOVW2G Proximity Sensor
The Sick IHM06-02BNOVW2G Proximity Sensor offers a Cylindrical; Extremely short model, 2 mm sensing range, Flush installation type, DC 3-wire NC output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IHM06-02BNOVW2G |
Sick IHM06-02BNOVW2G Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical; Extremely short model |
| Thread size | M4 x 0.5 |
| Diameter | Γ 6.5 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 5,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, V2A stainless steel (2x)Washer, V2A stainless steel, with locking teeth (2x)Cable flag, Polymatic 50 (1 x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 50 ms |
| Hysteresis | 1 % ... 10 % |
| Reproducibility | β€ 2 % 3) |
| Temperature drift (of Sr) | β€ 10 % |
| Continuous current Ia | β€ 200 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 16 mm |
| Thread length | 20 mm |
| Tightening torque, max. | β€ 0.8 Nm |
| Cable material | PVC |
| Conductor size | 0.25 mmΒ² |
| Cable diameter | Γ 3.7 mm |
| Switching output | NPN |
