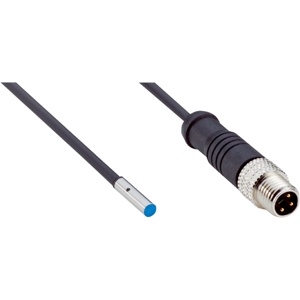

Sick IHM03-01BPOVR8S Proximity Sensor
The Sick IHM03-01BPOVR8S Proximity Sensor offers a Cylindrical; Standard design, 1 mm sensing range, Flush installation type, PNP NC output, and Cable with connector M8, 3-pin, 0.2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IH Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IHM03-01BPOVR8S |
Sick IHM03-01BPOVR8S Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical; Standard design |
| Diameter | Γ 3 mm |
| Sensing range Sn | 1 mm |
| Safe sensing range Sa | 0.81 mm |
| Installation type | Flush |
| Switching frequency | 4,200 Hz |
| Connection type | Cable with connector M8, 3-pin, 0.2 m |
| Switching output | PNP |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Special features | Visual adjustment indicator |
| Items supplied | Cable flag, Polymatic 50 (1 x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 20 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 10 ms |
| Hysteresis | 1 % ... 15 % |
| Reproducibility | β€ 2.5 % 3) |
| Temperature drift (of Sr) | β€ 10 % |
| Continuous current Ia | β€ 100 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 22 mm |
| Unit weight | 13.000 Grams |
| Net unit weight | 13 Grams |
| Country of origin | Malaysia |
| Cable material | PUR |
| Cable diameter | Γ 2.5 mm |
