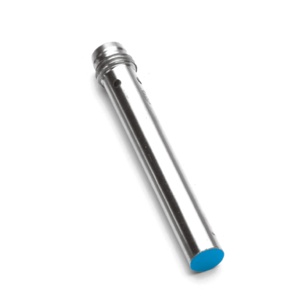

Sick IH06-02BNS-VT1 Proximity Sensor
The Sick IH06-02BNS-VT1 Proximity Sensor offers a Cylindrical; Standard design, 2 mm sensing range, Quasi-flush installation type, NPN NO output, and Connector M8, 3-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IH Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | IH06-02BNS-VT1 |
Sick IH06-02BNS-VT1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical; Standard design |
| Diameter | Γ 6.5 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Quasi-flush |
| Switching frequency | 5,000 Hz |
| Connection type | Connector M8, 3-pin |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | β€ 10 % 1) |
| Voltage drop | β€ 2 V 2) |
| Time delay before availability | β€ 50 ms |
| Hysteresis | 1 % ... 20 % |
| Reproducibility | β€ 5 % 3) 4) |
| Temperature drift (of Sr) | Β± 10 % |
| Continuous current Ia | β€ 200 mA |
| Ambient operating temperature | β25 Β°C ... +70 Β°C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, POM |
| Housing length | 50 mm |
| Unit weight | 6.800 Grams |
| Net unit weight | 6.8 Grams |
| Country of origin | Italy |
| Cable material | PVC |
| Conductor size | 0.14 mmΒ² |
| Cable diameter | Γ 3.1 mm |
| Ambient temperature, storage | β40 Β°C ... +85 Β°C |
