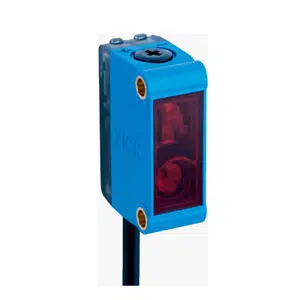

Sick GTE6-N1212 Photoelectric Sensor
The Sick GTE6-N1212 Photoelectric Sensor offers a Photoelectric proximity sensor, β€ 250 mm sensing range, PinPoint LED light source, NPN output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the G6 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GTE6-N1212 |
Sick GTE6-N1212 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Sensing range max. | β€ 300 mm |
| Sensing range | β€ 250 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 7 mm (90 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / β€ 3 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 1,250 ms 5) |
| Switching frequency | 500 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 60 g |
Reach Us by Email for Sick 3-wire NPN Photo Sensor GTE6-N1212 part no: 1051784 at Discounted Rates. Key Technical Features of GTE6-N1212, 1051784 are Photoelectric proximity sensor, Energetic, β€ 250 mm sensing range, PinPoint LED light source, Visible red light, Γ 7 mm (90 mm) light spot size, 650 nm wave length, 10 V DC ... 30 V DC supply voltage, Β± 10 % ripple, 30 mA current consumption, NPN output, Light/dark switching, Selectable via light/dark selector, < 1,250 ms response time, 500 Hz frequency, Rectangular housing, 12 mm x 31.5 mm x 21 mm dimensions, Cable, 3-wire, 2 m , IP67 Enclosure rating. Navigate Your Needs with a Quote for your requirement of Sick 3-wire NPN Photo Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
