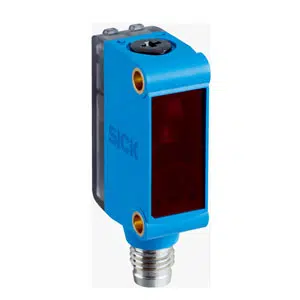

Sick GTB6L-P4211 Photoelectric Sensor
The Sick GTB6L-P4211 Photoelectric Sensor offers a Photoelectric proximity sensor, - sensing range, Laser light source, PNP output, and Male connector M8, 4-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the G6 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GTB6L-P4211 |
Sick GTB6L-P4211 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 400 mm |
| Sensing range | - |
| Light source | Laser |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 0.4 mm (150 mm) |
| Wave length | 680 nm |
| Adjustment | Potentiometer, Operating mode switch |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | β€ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | - |
| Switching mode selector | - |
| Signal voltage PNP HIGH/LOW | Approx. UB-3 V / 0 V |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 625 Β΅s |
| Switching frequency | 1,000 Hz 3) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 (EN 60529) |
| Ambient operating temperature | β20 Β°C ... +50 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | Approx. 60 g |
Get A Quote for Sick 400mm Laser Photoelectric Sensor GTB6L-P4211 part no: 1105810 at the best price. Here are the brief Technical Specifications of GTB6L-P4211, 1105810 are Photoelectric proximity sensor, Background suppression, - sensing range, Laser light source, Visible red light, Γ 0.4 mm (150 mm) light spot size, 680 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, β€ 20 mA, without load. At UB = 24 V current consumption, PNP output, -, -, β€ 625 Β΅s response time, 1,000 Hz frequency, Rectangular housing, 12 mm x 31.5 mm x 21 mm dimensions, Male connector M8, 4-pin, IP67 (EN 60529) Enclosure rating. It's Time to get a Quote for your requirement of Sick 400mm Laser Photoelectric Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
