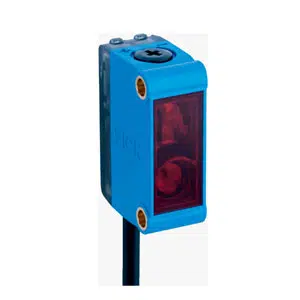

Sick GTB6-P1212 Photoelectric Sensor
The Sick GTB6-P1212 Photoelectric Sensor offers background suppression with a 5 mm to 250 mm sensing range for stable operation. This model includes a PinPoint LED producing visible red light, a PNP output, and a 1,000 Hz switching frequency for reliable detection. It is part of the Sick product line, aligns with the Sick Photoelectric Sensor category, and belongs to the G6 Series, featuring IP67 protection, mechanical adjustment, 3-wire cable, and a compact rectangular housing.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GTB6-P1212 |
Sick GTB6-P1212 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 5 mm ... 250 mm |
| Sensing range | 35 mm ... 140 mm |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (β€ 3 V) / approx. 0 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 625 Β΅s 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 60 g |
The Sick GTB6-P1212 Photoelectric Sensor provides reliable object detection using background suppression, a 5β250 mm sensing range, and a PinPoint LED visible red light source. The GTB6-P1212 model integrates a PNP switching output, 1,000 Hz switching frequency, and IP67 protection suitable for demanding industrial automation tasks. As part of the Sick G6 Series, it supports consistent sensing in compact machine installations requiring precision feedback.
The Sick GTB6-P1212 Photoelectric Sensor is commonly used in conveyors, automated packaging lines, part-detection stations, and assembly equipment. Its defined light spot and mechanical adjustment ensure stable detection even with inconsistent surface finishes. The rectangular housing and 3-wire cable connection simplify installation, while fast response time supports high-speed operations that depend on accurate object presence feedback and reliable switching.
The Sick GTB6-P1212 Photoelectric Sensor combines stable background-suppressed sensing, dependable PNP output, and compact IP67-rated construction for continuous operation. Its clear detection performance, precise red-light LED, and consistent switching behavior make it a suitable choice for automation environments requiring reliable part positioning and machine feedback. The GTB6-P1212 reinforces the Sick brandβs established role in delivering dependable sensing components for industrial applications.
