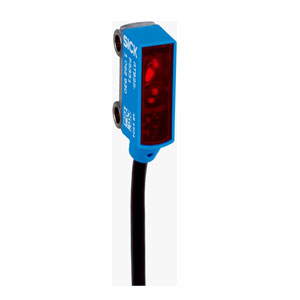

Sick GTB2S-P5331 Photoelectric Sensor
The Sick GTB2S-P5331 Photoelectric Sensor provides a 5β30 mm sensing range using 640 nm PinPoint LED background suppression. It features a compact 7.7 Γ 21.8 Γ 13.5 mm housing, 800 Hz switching frequency, PNP light switching, and a fast 0.6 ms response time. The device includes IP67 protection, a PVC cable with M8 connector, and stable operation between β25 Β°C and +50 Β°C. See more on Sick Sensors, explore Sick Photoelectric Sensors, or view the Sick G2 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Product | GTB2S-P5331 |
Sick GTB2S-P5331 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm ... 36 mm |
| Sensing range | 5 mm ... 30 mm |
| Type of Light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Γ 3 mm (15 mm) |
| Wave length | 640 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | β€ 50 mA |
| Response time | < 0.6 ms 4) |
| Switching frequency | 800 Hz 5) |
| Connection type | Cable with connector M8, 3-pin, 200 mm |
| Cable material | PVC |
| Cable diameter | Γ 3 mm |
| Housing material | Plastic, ABS |
| Optics material | Plastic, MABS |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +50 Β°C |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | 17.5 g |
The Sick GTB2S-P5331 Photoelectric Sensor offers reliable background suppression for short-range industrial detection tasks. This model delivers a 5β30 mm sensing range, uses a 640 nm PinPoint LED, and supports PNP light switching for stable output signals. As part of the Sick G2 series, it features a compact ABS housing, 800 Hz switching frequency, and IP67 protection suitable for demanding industrial environments.
The GTB2S-P5331 is suitable for conveyors, packaging machinery, assembly lines, and compact automation equipment. Its defined 3 mm light spot, rapid 0.6 ms response, and stable background suppression support reliable detection of small or fast-moving components. The PVC cable with M8 connector ensures easy installation even in tight machine spaces.
The Sick GTB2S-P5331 Photoelectric Sensor provides consistent short-range sensing performance with dependable background suppression and durable construction. With its accurate LED-based detection, IP67-rated protection, and efficient low-power electronic design, the model supports long-term use across industrial automation systems. Engineers trust Sick sensing products for stable and repeatable performance in continuous operations.
