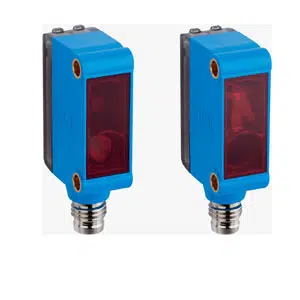

Sick GSE6-P4112 Photoelectric Sensor
The Sick GSE6-P4112 photoelectric sensor enables through-beam detection with 10 m sensing range and PNP output for industrial automation. This Sick 10 m Through-beam Photo Sensor uses visible red 650 nm PinPoint LED, operates on 10–30 V DC supply, supports 1,000 Hz switching frequency, and features an IP67 rectangular housing with M8 connector. It is part of Sick sensing solutions, listed under Sick Photoelectric Sensors, and belongs to the G6 Series used in industrial automation systems.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-P4112 |
Sick GSE6-P4112 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 40 g |
The GSE6-P4112 Sick 10 m Through-beam Photo Sensor is a through-beam photoelectric sensor designed for stable object detection in industrial automation. The GSE6-P4112 operates with a 0–10 m sensing range and supports detection up to 15 m maximum distance. It uses a visible red 650 nm LED and provides a PNP digital output while operating on 10–30 V DC supply. This model belongs to the G6 series and is used in structured automation environments.
The GSE6-P4112 Sick 10 m Through-beam Photo Sensor is applied in conveyors, packaging systems, assembly lines, and automated material handling. Its through-beam sensing principle ensures reliable detection across long distances between emitter and receiver. The rectangular housing supports compact mounting, and the consistent PNP output allows stable signal transfer to PLC and control systems. The fast response time supports continuous operation in high-speed industrial automation processes.
The Sick GSE6-P4112 Photoelectric Sensor delivers dependable performance through its IP67-rated enclosure, fixed optical alignment, and defined electrical characteristics. Standardized M8 connectivity, controlled sensing distance, and stable output support predictable system integration. As part of Sick’s industrial sensing portfolio, the GSE6-P4112 is suitable for industrial automation environments requiring consistent detection, electrical reliability, and environmental resistance.
