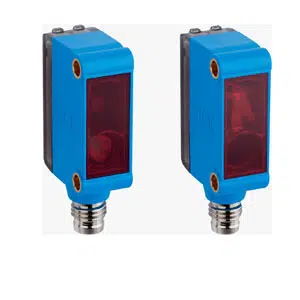

Sick GSE6-P4111 Photoelectric Sensor
The Sick GSE6-P4111 Photoelectric Sensor provides through-beam object detection with a 0 m to 15 m sensing range for industrial automation. This model features a PinPoint LED visible red light source, a PNP output, and a 1,000 Hz switching frequency for reliable performance. It is part of the Sick sensor lineup, aligns with the Sick Photoelectric Sensor category, and belongs to the G6 Series, offering IP67 protection, M8 connector, and compact rectangular housing.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-P4111 |
Sick GSE6-P4111 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (β€ 3 V) / approx. 0 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 500 Β΅s 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 40 g |
The Sick GSE6-P4111 Photoelectric Sensor is a long-range detection device based on a through-beam sensing principle, offering a 0β15 m range and a PinPoint LED light source. The GSE6-P4111 integrates a PNP switching output, 1,000 Hz switching frequency, and IP67 enclosure suited for industrial automation. Being part of the Sick G6 Series, it supports machines requiring stable and accurate sensing across extended distances.
The Sick GSE6-P4111 Photoelectric Sensor is used in conveyors, automated packaging lines, pallet handling, and assembly stations where long-range object verification is required. Its defined beam and fast response provide reliable detection even in dusty or high-speed environments. The compact rectangular housing and M8 connector allow easy mounting, while consistent switching ensures dependable feedback for automation controls.
The Sick GSE6-P4111 Photoelectric Sensor combines long-range through-beam performance, stable PNP output, and IP67-rated durability suitable for continuous industrial operation. With dependable detection capability, clear LED alignment, and precise switching behavior, the GSE6-P4111 supports engineers needing strong signal reliability and consistent object presence verification. This model reinforces the Sick brandβs reputation for dependable sensing solutions used across demanding automation applications.
