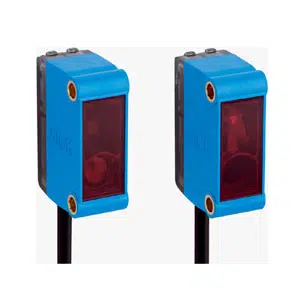

Sick GSE6-P1111 Photoelectric Sensor
The Sick GSE6-P1111 Photoelectric Sensor offers a Through-beam photoelectric sensor, 0 m ... 10 m sensing range, PinPoint LED light source, PNP output, and Cable, 3-wire, 2 m connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the G6 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-P1111 |
Sick GSE6-P1111 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (β€ 3 V) / approx. 0 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 500 Β΅s 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 170 g |
The Sick GSE6-P1111 Photoelectric Sensor uses a through-beam sensing principle and features a PinPoint LED emitting visible red light at 650 nm for sharp, focused detection. With a powerful sensing range of up to 10 meters (maximum 15 meters), this sensor provides reliable long-distance detection of opaque or solid objects. Its light spot sizeβΓ 375 mm at 12 mβenables stable alignment even across extended gaps in conveyor systems or robotic lines.
The GSE6-P1111 photoelectric sensor has a fast response time under 500 Β΅s and supports switching frequencies up to 1,000 Hz, making it suitable for high-speed industrial processes. It supports light/dark switching via selector switch and outputs a PNP digital signal compatible with most PLC systems. With no manual adjustment required, this sensor reduces installation time and simplifies integration. It operates within a voltage range of 10β30 V DC and consumes just 30 mA of current, ensuring energy-efficient performance in continuous-use scenarios.
Its rugged rectangular housing (12 mm Γ 31.5 mm Γ 21 mm) is made from ABS/PC plastic with a PMMA front lens, delivering protection up to IP67 standards. The 3-wire, 2-meter cable connection ensures secure and reliable data transmission. With an ambient operating temperature range of β25 Β°C to +55 Β°C, and weighing just 170 g, the GSE6-P1111 sensor is ideal for robust industrial environments requiring long-distance precision sensing.
The Sick GSE6-P1111 Photoelectric Sensor is ideal for long-range detection in high-speed industrial automation systems. Itβs commonly used in conveyor belts, palletizers, and assembly lines where accurate detection is needed over several meters. Its through-beam design ensures clear signal detection even in dusty or semi-obstructed areas.
Because of its fast response time and high switching frequency, it can reliably detect moving objects in sorting or packaging machines. Engineers appreciate that it requires no manual adjustments and integrates easily into existing PLC setups. The M8-compatible cable ensures a quick and secure connection, minimizing downtime during installation or maintenance.
Students and junior maintenance engineers can study the GSE6-P1111 photoelectric sensor as an example of high-performance long-range sensing. It combines powerful detection range with simple wiring and long-term durability, making it a preferred choice in industrial projects. Whether you're building a new machine or upgrading an existing one, this Sick photoelectric sensor delivers reliable, industrial-grade performance from start to finish.
