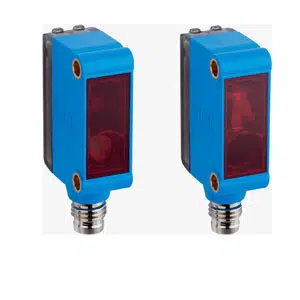

Sick GSE6-N4112 Photoelectric Sensor
The Sick GSE6-N4112 photoelectric sensor is a through-beam device offering 10 m sensing range using visible red light technology, designed for industrial automation. This Sick photoelectric sensor from the G6 series functions as a Sick 15 m Through-beam Photo Sensor with NPN digital output, PinPoint LED light source, light/dark switching, 10–30 V DC supply, M8 connector, and IP67 enclosure for stable operation.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-N4112 |
Sick GSE6-N4112 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 40 g |
The GSE6-N4112 Sick 15 m Through-beam Photo Sensor is designed for reliable long-distance optical detection in industrial automation systems. This Sick photoelectric sensor provides through-beam sensing up to 10 m, NPN output, 650 nm visible red light, and 1,000 Hz switching frequency. The GSE6-N4112 belongs to the Sick G6 series and supports accurate object detection in continuous industrial processes.
The GSE6-N4112 Sick 15 m Through-beam Photo Sensor is commonly applied in conveyors, packaging lines, automated material handling, and assembly systems. Through-beam operation enables precise detection of objects across long distances, while fast response time supports high-speed automation. Stable output characteristics help maintain consistent sensing performance in demanding industrial environments.
The Sick GSE6-N4112 photoelectric sensor delivers dependable performance through controlled electrical specifications and robust mechanical design. Its IP67-rated housing, rectangular form factor, and M8 connector support reliable installation and long-term use. As part of the Sick G6 photoelectric sensor family, the GSE6-N4112 is suitable for industrial applications requiring accurate NPN-based through-beam sensing.
