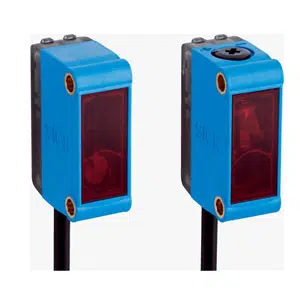

Sick GSE6-N1212 Photoelectric Sensor
The Sick GSE6-N1212 photoelectric sensor is a through-beam device providing 10 m sensing range using visible red light technology. This Sick photoelectric sensor from the G6 series operates as a Sick 15 m Through-beam Sensor with NPN digital output, PinPoint LED light source, light/dark switching, 10–30 V DC supply, 1,000 Hz switching frequency, IP67 enclosure, and stable industrial automation performance.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-N1212 |
Sick GSE6-N1212 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270° |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 170 g |
The GSE6-N1212 Sick 15 m Through-beam Sensor is a through-beam photoelectric sensor designed for long-distance object detection in industrial automation. This Sick photoelectric sensor supports a 0–10 m sensing range, NPN output, and PinPoint LED visible red light for reliable optical alignment. Operating on a 10–30 V DC supply, the GSE6-N1212 belongs to the G6 series and supports consistent signal output across automated systems.
The GSE6-N1212 is commonly used in conveyors, packaging lines, material handling systems, and automated production cells. Through-beam operation enables accurate detection over extended distances, while the 1,000 Hz switching frequency supports fast-moving objects. The rectangular housing and cable connection allow straightforward installation in structured industrial layouts.
The Sick GSE6-N1212 photoelectric sensor delivers stable detection, defined response times, and consistent electrical performance. The IP67-rated enclosure protects internal components from dust and moisture, ensuring dependable operation in harsh environments. As part of the Sick G6 photoelectric sensor family, the GSE6-N1212 aligns with established industrial sensing standards.
