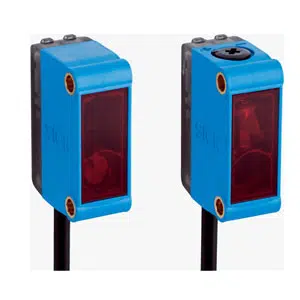

Sick GSE6-N1211 Photoelectric Sensor
The Sick GSE6-N1211 Photoelectric Sensor delivers through-beam visible red detection with a 10 m sensing range for industrial automation. It features a 650 nm PinPoint LED, supports NPN output, allows light/dark switching selection, and operates at a fast 1,000 Hz switching frequency with a 500 Β΅s response time. This model forms part of the Sick portfolio, aligns with the Sick Photoelectric Sensors category, and belongs to the compact G6 Series featuring IP67 protection and ABS/PC housing.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-N1211 |
Sick GSE6-N1211 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270Β° |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / β€ 3 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 500 Β΅s 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 170 g |
The Sick GSE6-N1211 Photoelectric Sensor combines a 10 m sensing range, 650 nm visible red LED, NPN switching output, and a 1,000 Hz switching frequency for reliable long-distance through-beam detection. As part of the Sick G6 Series, the GSE6-N1211 is built for stable sensing in compact automation layouts, supported by IP67 protection, ABS/PC housing, and a 270Β° potentiometer for adjustable operation.
The Sick GSE6-N1211 Photoelectric Sensor is suitable for conveyors, packaging machinery, automated handling, and assembly processes. Its through-beam sensing principle ensures consistent performance even in dusty or vibration-prone environments, while the fast response time supports high-speed material flow. The rectangular compact housing and 3-wire cable connection make integration simple across diverse industrial automation systems.
The Sick GSE6-N1211 Photoelectric Sensor provides dependable detection stability, accurate long-range sensing, and durable operation within IP67-rated environments. With established Sick brand quality and consistent optical performance, the GSE6-N1211 supports reliable sensing across industrial automation applications requiring strong through-beam detection and robust environmental endurance.
