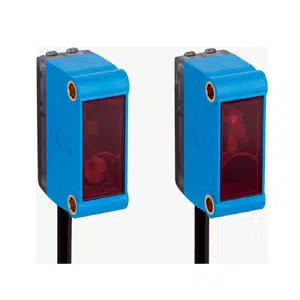

Sick GSE6-N1112 Photoelectric Sensor
The Sick GSE6-N1112 photoelectric sensor provides through-beam detection, 10 m sensing range, and NPN output for industrial automation. This GSE6-N1112 Sick NPN Through-beam Photoelectric Sensor uses visible red 650 nm PinPoint LED, operates on 10–30 V DC supply, supports 1,000 Hz switching frequency, and features an IP67 rectangular housing with 3-wire cable connection. It is part of Sick sensing solutions, listed under Sick Photoelectric Sensors, and belongs to the G6 Series used in industrial automation systems.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-N1112 |
Sick GSE6-N1112 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 170 g |
The GSE6-N1112 Sick NPN Through-beam Photoelectric Sensor is designed for reliable object detection in industrial automation environments. The GSE6-N1112 operates with a 10 m sensing range, visible red PinPoint LED, and stable NPN digital output. It functions on 10–30 V DC supply and is classified under the G6 photoelectric sensor series.
The GSE6-N1112 Sick NPN Through-beam Photoelectric Sensor is commonly applied in conveyors, packaging lines, automated assembly stations, and material handling systems. The through-beam sensing principle enables consistent detection across longer distances. Its rectangular IP67 enclosure supports dependable operation in industrial automation installations.
The Sick GSE6-N1112 Photoelectric Sensor delivers consistent switching behavior and electrical compatibility with PLC-controlled systems. Its optical and electrical specifications support long-term industrial usage. As part of the Sick G6 series, the GSE6-N1112 is suitable for through-beam photoelectric sensing in industrial automation applications.
