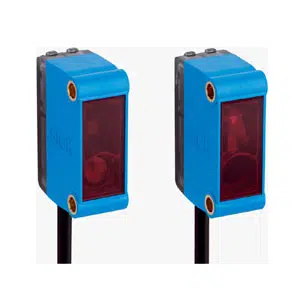

Sick GSE6-N1111 Photoelectric Sensor
The Sick GSE6-N1111 photoelectric sensor provides through-beam detection with 10 m sensing range and NPN output for industrial automation. The GSE6-N1111 Sick 10m NPN Photoelectric Sensor uses PinPoint LED visible red light at 650 nm wavelength, supports 1,000 Hz switching frequency, and operates on 10–30 V DC supply with IP67 enclosure. It is manufactured by Sick, listed under Sick Photoelectric Sensors, and belongs to the G6 Series used in industrial automation systems.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6-N1111 |
Sick GSE6-N1111 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 375 mm (12 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 500 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable, 3-wire, 2 m |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 170 g |
The GSE6-N1111 Sick 10m NPN Photoelectric Sensor is a through-beam photoelectric sensor designed for long-distance object detection. The GSE6-N1111 operates with a 10 m sensing range, NPN digital output, 650 nm visible red LED, and 1,000 Hz switching frequency. This sensor is part of the Sick G6 series and is widely used in Indian industrial automation environments.
The GSE6-N1111 Sick 10m NPN Photoelectric Sensor is commonly applied in conveyors, packaging lines, automated assembly systems, and material handling equipment. Its through-beam sensing principle enables reliable detection over extended distances. The rectangular housing and cable connection support stable installation in compact machines while maintaining consistent signal output.
The Sick GSE6-N1111 Photoelectric Sensor delivers dependable performance for continuous industrial use. Its IP67-rated enclosure supports operation in dusty and moisture-exposed factory conditions. As a member of the G6 series, the GSE6-N1111 aligns with Sick photoelectric sensor standards and supports long-term reliability in automation systems.
