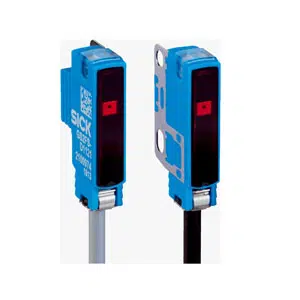

Sick GSE2FS-E1161 Photoelectric Sensor
The Sick GSE2FS-E1161 Photoelectric Sensor delivers a 0–1,000 mm sensing range using a 660 nm PinPoint LED with through-beam detection. It features a compact 4.5 × 21 × 11 mm housing, 800 Hz switching frequency, 0.625 ms response time, and NPN dark switching output. IP67 protection, a 2 m PVC cable, and VISTAL® and MABS construction ensure reliable operation. Explore Sick Sensors, view Sick Photoelectric Sensors, or learn about the Sick G2 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Product | GSE2FS-E1161 |
Sick GSE2FS-E1161 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Dimensions (W x H x D) | 4.5 mm x 21 mm x 11 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm ... 1,300 mm |
| Sensing range | 0 mm ... 1,000 mm |
| Type of Light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Ø 100 mm (1,000 mm) |
| Wave length | 660 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA |
| Switching output | NPN |
| Switching mode | Dark switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.625 ms |
| Switching frequency | 800 Hz 4) |
| Connection type | Cable, 3-wire, 2 m 5) |
| Cable material | PVC |
| Cable diameter | Ø 2.3 mm |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, MABS |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 39.8 g |
The Sick GSE2FS-E1161 Photoelectric Sensor provides accurate long-range detection in compact automation systems. The model supports a 0–1,000 mm sensing range, uses a focused 660 nm red LED, and operates with NPN dark switching for clean output signals. As part of the Sick G2 series, it is built with a slim 4.5 × 21 × 11 mm housing and includes IP67 protection to withstand demanding industrial environments.
This sensor is suitable for conveyors, packaging lines, indexing stations, and assembly machines where long-distance object detection is required. Its defined light spot, fast 800 Hz switching frequency, and stable through-beam operation ensure consistent performance even with moving or small targets. The compact body simplifies installation in tight spaces while maintaining stable detection in continuous machine operation.
The Sick GSE2FS-E1161 Photoelectric Sensor offers reliable through-beam detection, strong signal stability, and consistent performance across industrial applications. With its wide sensing range, durable VISTAL® structure, and low power consumption, engineers depend on this model for long-term operational accuracy. Sick’s proven sensing technology ensures trustworthy detection results for automation and material handling systems.
