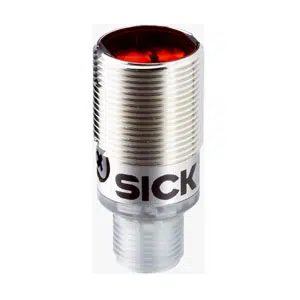

Sick GRTE18S-P2362 Photoelectric Sensor
The Sick GRTE18S-P2362 Photoelectric Sensor offers a Cylindrical design, 10 mm ... 800 mm sensing range, LED light source, PNP output, and Connector M12, 3-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the GR Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Product | GRTE18S-P2362 |
Sick GRTE18S-P2362 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 5 mm ... 1,000 mm |
| Sensing range | 10 mm ... 800 mm |
| Type of light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Γ 45 mm (800 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270Β° |
| Indication | LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Switching Output | PNP |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | - |
| Output current Imax. | β€ 100 mA 3) |
| Response time | < 1,000 Β΅s 4) |
| Switching frequency | 500 Hz 5) |
| Connection type | Connector M12, 3-pin |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Ambient operating temperature | β25 Β°C ... +55 Β°C 9) |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
Call us for Sick 38.1mm Cylindrical Photo Sensor GRTE18S-P2362 part no: 1069504 at the lowest pricing. In-depth Technical Analysis of GRTE18S-P2362, 1069504 featurePhotoelectric proximity sensor, Energetic, 18 mm x 18 mm x 38.1 mm dimensions, Cylindrical, M18 x 1 diameter, Axial, 10 mm ... 800 mm sensing range, Visible red light, LED light source, Γ 45 mm (800 mm) light spot size, 650 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, 30 mA current consumption, PNP output, Light switching, β€ 100 mA output current, < 1,000 Β΅s response time, 500 Hz frequency, Connector M12, 3-pin, IP67 Enclosure rating. Capture the Best Deal with a Quote for your requirement of Sick 38.1mm Cylindrical Photo Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
