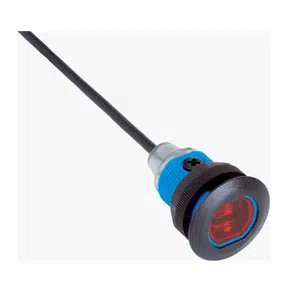

Sick GRTB18S-N3017S13 Photoelectric Sensor
Sick GRTB18S-N3017S13 photoelectric sensor provides background suppression with NPN output IP67 enclosure and 150 mm sensing range capability industrial. This Sick Photoelectric Sensor from the GR Series uses visible red PinPoint LED light, supports light switching, operates on 10β30 V DC, and connects via an M8 male connector.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Product | GRTB18S-N3017S13 |
Sick GRTB18S-N3017S13 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 3 mm ... 300 mm |
| Sensing range | 20 mm ... 150 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Γ 7 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270Β° |
| Indication | LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Switching Output | NPN |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | Approx. VS / β€ 3 V |
| Output current Imax. | β€ 100 mA 3) |
| Response time | < 500 Β΅s 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable with M8 male connector, 4-pin, 300 mm 6) |
| Protection class | III |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Ambient operating temperature | β25 Β°C ... +55 Β°C 10) |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
The Sick GRTB18S-N3017S13 Photoelectric Sensor is a compact proximity sensor designed for precise object detection using background suppression. It delivers NPN switching output, a defined 20β150 mm sensing range, and PinPoint LED optics for controlled detection. This model belongs to the GR Series and features an M18 cylindrical housing with IP67 protection, making it suitable for industrial automation environments.
In practical applications, the Sick GRTB18S-N3017S13 Photoelectric Sensor is used on conveyors, packaging machinery, assembly stations, and automated inspection systems. Background suppression helps reduce false detection from reflective surfaces, while stable switching behavior supports consistent signal output. The compact housing and short M8 cable connection allow easy integration into space-constrained automation setups.
The Sick GRTB18S-N3017S13 Photoelectric Sensor combines defined optical performance, electrical stability, and durable construction. Its sensing characteristics, enclosure rating, and voltage compatibility support continuous industrial operation. Sick is a globally established sensor manufacturer, and this GR Series photoelectric sensor is designed for reliable use across demanding industrial automation applications.
