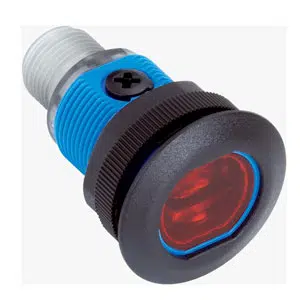

Sick GRTB18S-N2317 Photoelectric Sensor
The Sick GRTB18S-N2317 Photoelectric Sensor offers a Cylindrical design, 20 mm ... 150 mm sensing range, PinPoint LED light source, NPN output, and Connector M12, 3-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the GR Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Product | GRTB18S-N2317 |
Sick GRTB18S-N2317 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 3 mm ... 300 mm |
| Sensing range | 20 mm ... 150 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | ร 7 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270ยฐ |
| Indication | LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Switching Output | NPN |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | Approx. VS / โค 3 V |
| Output current Imax. | โค 100 mA 3) |
| Response time | < 500 ยตs 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Connector M12, 3-pin |
| Protection class | III |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Ambient operating temperature | โ25 ยฐC ... +55 ยฐC 9) |
| Ambient temperature, storage | โ40 ยฐC ... +70 ยฐC |
Mail Us for Sick Axial Background Suppression Sensor GRTB18S-N2317 part no: 1076097 at the lowest pricing. Technical Specs Summary of GRTB18S-N2317, 1076097 are Photoelectric proximity sensor, Background suppression, 18 mm x 18 mm x 38.1 mm dimensions, Cylindrical, M18 x 1 diameter, Axial, 20 mm ... 150 mm sensing range, Visible red light, PinPoint LED light source, ร 7 mm (100 mm) light spot size, 650 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, 30 mA current consumption, NPN output, Light switching, โค 100 mA output current, < 500 ยตs response time, 1,000 Hz frequency, Connector M12, 3-pin, IP67 Enclosure rating. Navigate Your Needs with a Quote for your requirement of Sick Axial Background Suppression Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
