Procurement teams shortlist GRSE18S-F2336 with Sick Laser Sensor, Sick Gtb6 P4211 and P&F Photoelectric Sensor, aligning budget approvals, warranty terms, and multisite availability for smoother rollout across plants.

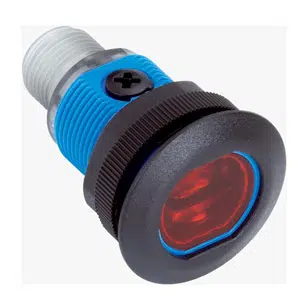

Sick GRSE18S-F2336 Photoelectric Sensor
The Sick GRSE18S-F2336 Photoelectric Sensor offers a Cylindrical design, 0 m ... 10 m sensing range, PinPoint LED light source, PNP output, and Connector M12, 3-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the GR Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Product | GRSE18S-F2336 |
Sick GRSE18S-F2336 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 m ... 15 m |
| Sensing range | 0 m ... 10 m |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Γ 250 mm (10 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Indication | LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Switching Output | PNP |
| Switching mode | Dark switching |
| Signal voltage PNP HIGH/LOW | VS - (β€ 3 V) / approx. 0 V |
| Output current Imax. | β€ 100 mA 3) |
| Response time | < 500 Β΅s 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Connector M12, 3-pin |
| Protection class | III |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (4 x) |
| Ambient operating temperature | β25 Β°C ... +55 Β°C 9) |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
Built to meet demanding industrial requirements, the Sick GRSE18S-F2336 Photoelectric Sensor offers superior detection capability with its through-beam sensor design. Featuring a compact 18 mm x 18 mm x 38.1 mm cylindrical housing with an M18 x 1 thread, this sensor ensures easy installation even in tight spaces. It provides an impressive sensing range of up to 10 meters with a maximum capability of 15 meters when optimally aligned. Powered by a highly visible PinPoint LED emitting red light at 650 nm wavelength, it maintains a precise Γ 250 mm light spot at 10 meters for accurate target recognition.
The GRSE18S-F2336 operates with a supply voltage of 10 V DC to 30 V DC and is designed for energy efficiency with a current consumption of 30 mA. It features a PNP switching output configured for dark switching mode, with a maximum output current of 100 mA and a quick response time of less than 500 Β΅s. Its rugged IP67 enclosure rating guarantees reliable operation even in challenging environmental conditions, backed by a durable plastic ABS housing and PMMA optics. Connection is made easy through a standard M12, 3-pin connector, streamlining integration into automated systems.
Trusted for its high switching frequency of 1,000 Hz, robust performance, and simple installation, the Sick GRSE18S-F2336 is ideal for industrial manufacturing, packaging, and logistics automation. Request a customized quote today and experience competitive pricing and expert support that surpasses typical distributor offerings.
