Procurement teams shortlist GRL18S-K2436 with Sick Laser Sensor, Sick Gtb6 P4211 and P&F Photoelectric Sensor, aligning budget approvals, warranty terms, and multisite availability for smoother rollout across plants.

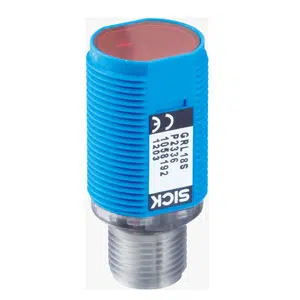

Sick GRL18S-K2436 Photoelectric Sensor
The Sick GRL18S-K2436 Photoelectric Sensor offers a Cylindrical design, 0.06 m ... 6 m sensing range, PinPoint LED light source, PNP output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the GR Series.
| Brand | Sick |
| Product Type | Photolectric Sensor |
| Product | GRL18S-K2436 |
Sick GRL18S-K2436 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.03 m ... 7.2 m |
| Sensing range | 0.06 m ... 6 m |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | Γ 175 mm (7 m) |
| Wave length | 650 nm |
| Adjustment | None |
| Indication | LED green, LED yellow |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA |
| Switching Output | PNP |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | - |
| Output current Imax. | β€ 100 mA 3) |
| Response time | < 500 Β΅s 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Ambient operating temperature | β25 Β°C ... +55 Β°C 9) |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
Get A Quote for Sick PMMA Retro-reflective Sensor GRL18S-K2436 part no: 1069997 at the best price. Here are the brief Technical Specifications of GRL18S-K2436, 1069997 are Photoelectric retro-reflective sensor, Dual lens, 18 mm x 18 mm x 38.1 mm dimensions, Cylindrical, M18 x 1 diameter, Axial, 0.06 m ... 6 m sensing range, Visible red light, PinPoint LED light source, Γ 175 mm (7 m) light spot size, 650 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, 30 mA current consumption, PNP output, Light/dark switching, β€ 100 mA output current, < 500 Β΅s response time, 1,000 Hz frequency, Male connector M12, 4-pin, IP67 Enclosure rating. It's Time to get a Quote for your requirement of Sick PMMA Retro-reflective Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
