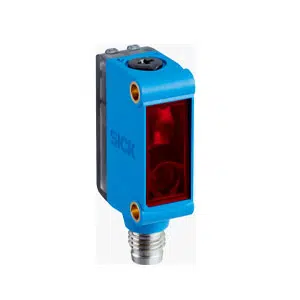

Sick GL6-P4211 Photoelectric Sensor
The Sick GL6-P4211 Photoelectric Sensor offers a Photoelectric retro-reflective sensor, β€ 5 m sensing range, PinPoint LED light source, PNP output, and Male connector M8, 4-pin connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the G6 Series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GL6-P4211 |
Sick GL6-P4211 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Sensing range max. | β€ 6 m |
| Sensing range | β€ 5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Γ 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270Β° |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | Β± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS - (β€ 3 V) / approx. 0 V |
| Output current Imax. | β€ 100 mA 4) |
| Response time | < 625 Β΅s 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +55 Β°C |
| Ambient temperature, storage | β40 Β°C ... +70 Β°C |
| Weight | 20 g |
Mail Us for your needs in Sick Rectangular Reflective Sensor GL6-P4211 part no: 1059241 with budget-friendly prices. The Main Technical Parameters of GL6-P4211, 1059241 include Photoelectric retro-reflective sensor, Dual lens, β€ 5 m sensing range, PinPoint LED light source, Visible red light, Γ 8 mm (350 mm) light spot size, 650 nm wave length, 10 V DC ... 30 V DC supply voltage, Β± 10 % ripple, 30 mA current consumption, PNP output, Light/dark switching, < 625 Β΅s response time, 1,000 Hz frequency, Rectangular housing, 12 mm x 31.5 mm x 21 mm dimensions, Male connector M8, 4-pin, IP67 Enclosure rating. Customize Your Experience with a Quote for your requirement of Sick Rectangular Reflective Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
