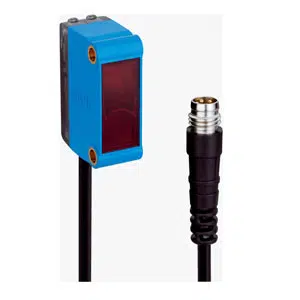

Sick GL6-P0112P07 Photoelectric Sensor
The Sick GL6-P0112P07 photoelectric sensor is a retro-reflective device offering 5 m sensing range using visible red light technology. This Sick photoelectric sensor from the G6 series operates as a Sick ABS Retro-reflective Sensor with PNP digital output, PinPoint LED light source, 30 mA current consumption, 10–30 V DC supply, light/dark switching, M8 connector, and IP67 enclosure for industrial automation environments.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GL6-P0112P07 |
Sick GL6-P0112P07 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Sensing range max. | ≤ 6 m |
| Sensing range | ≤ 5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | ≤ 625 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with connector M8, 3-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 20 g |
The GL6-P0112P07 Sick ABS Retro-reflective Sensor is a compact retro-reflective photoelectric sensor designed for controlled detection tasks in industrial automation systems. This Sick photoelectric sensor supports a 0–5 m sensing range, PNP output, and PinPoint LED visible red light to ensure stable optical performance. Operating on a 10–30 V DC supply, the GL6-P0112P07 belongs to the G6 series and maintains consistent signal behavior.
The GL6-P0112P07 is used in conveyors, packaging equipment, automated assembly lines, and material handling applications. Retro-reflective operation simplifies alignment while maintaining reliable detection. The rectangular housing, ABS construction, and M8 connector support easy installation in space-constrained industrial layouts.
The Sick GL6-P0112P07 photoelectric sensor provides defined response times, stable switching behavior, and consistent electrical characteristics. Its IP67 enclosure protects against dust and moisture, supporting long-term operation in demanding environments. As part of the Sick G6 photoelectric sensor range, the GL6-P0112P07 aligns with established industrial sensing standards.
