Sick DOL-1212-G05MA: Sensor Actuator Cable
Technical Specifications of Sick Sensor Actuator Cable DOL-1212-G05MA:
| Cable | 5 m, 12-wire, PUR, halogen-free |
| Cable diameter | 6.2 mm |
| Reference voltage | ≤ 30 V |
| Current loading | 1.5 A |
Sick Sensor Actuator Cable DOL-1212-G05MA Technical Specifications
| Specification | Value |
|---|

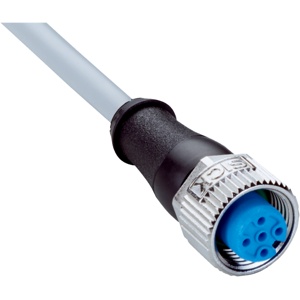

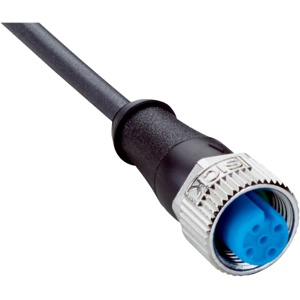

| Connection type head A | Female connector, M12, 12-pin, straight |
| Connection type head B | Flying leads |
| Connector material | TPU |
| Connector color | Black |
| Cable | 5 m, 12-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Gray |
| Cable diameter | 6.2 mm |
| Conductor cross section | 0.14 mm² |
| Shielding | Shielded |
| Reference voltage | ≤ 30 V |
| Current loading | 1.5 A |
| Signal type | Sensor/actuator cable |
| Operating temperature Flexible use | –5 °C ... +80 °C |
| Operating temperature Stationary position | –30 °C ... +90 °C |
| Operating temperature Head | –25 °C ... +85 °C |
