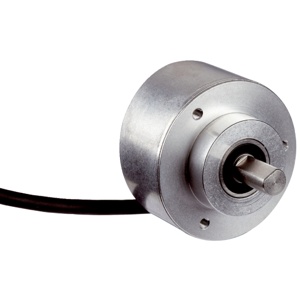

Sick DFS60B-S4PK10000 - Incremental Encoder
The Sick DFS60B-S4PK10000 incremental encoder delivers 10,000 pulses per revolution, TTL / HTL output, and ≤ 600 kHz frequency for industrial automation. This Sick Sick Encoder from the operates on 4.5–32 V DC supply, uses a solid stainless-steel shaft, 1.5 m 8-wire cable connection, 6-channel signals, and supports ≤ 9,000 min⁻¹ speed for incremental encoder feedback.
| Brand | Sick |
| Product Type | Incremental Encoder |
| Model Number | DFS60B-S4PK10000 |
Sick DFS60B-S4PK10000 Incremental Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Pulses per revolution | 10,000 1) |
| Measuring step | 90°, electric/pulses per revolution |
| Error limits | ± 0.05° |
| Communication interface | Incremental |
| Communication Interface detail | TTL / HTL |
| Number of signal channels | 6-channel |
| Initialization time | 32 ms, 30 ms 1) |
| Output frequency | ≤ 600 kHz |
| Load current | ≤ 30 mA |
| Power consumption | ≤ 0.7 W (without load) |
| Connection type | Cable, 8-wire, universal, 1.5 m 1) |
| Supply voltage | 4.5 ... 32 V |
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mmWith face |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | 0.5 Ncm (+20 °C) |
| Operating torque | 0.3 Ncm (+20 °C) |
| Operating speed | ≤ 9,000 min⁻¹ 1) |
| Moment of inertia of the rotor | 6.2 gcm² |
| Bearing lifetime | 3.6 x 10^10 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
| Operating temperature range | –40 °C ... +100 °C 1)–30 °C ... +100 °C 2) |
| Storage temperature range | –40 °C ... +100 °C, without package |
The DFS60B-S4PK10000 incremental encoder is a Sick incremental encoder designed for rotational feedback in industrial automation systems. The DFS60B-S4PK10000 incremental encoder provides 10,000 pulses per revolution, supports TTL / HTL signal output, and delivers ≤ 600 kHz output frequency for accurate speed and position monitoring. It belongs to the DFS60 series and is commonly used in encoder-based motion control applications.
In industrial environments, the DFS60B-S4PK10000 incremental encoder is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Its fixed cable connection simplifies wiring in control cabinets, while stable pulse output ensures reliable motion detection. The solid shaft construction supports secure mechanical mounting in continuous-operation automation equipment.
The DFS60B-S4PK10000 incremental encoder combines defined electrical characteristics with mechanical stability expected from Sick encoder products. With controlled torque values, long bearing lifetime, and a wide operating temperature range, it is suitable for continuous industrial use. The DFS60B-S4PK10000 incremental encoder remains a dependable DFS60 series solution for engineers requiring stable incremental feedback.
